Overview

Condition: New vehicle
Manufacturer: Polaris
Model: Sportsman 850 Ultimate Trail
Year: 2024
Stock #: SB 0030-6518
Type: ATV (Quad)
VIN: SB 0030-6518
Exterior colour: Blue
Vehicle ID: f13b8c0e-0311-4b0f-9469-3bc07f2df83c
Type: ATV

Specifications

Engine & Drivetrain

Active Descent Control: Equipped
Cooling: Liquid
Cylinders Displacement: 2 / 850cc
Drive System Type: One Touch On-demand Awd/2wd
Engine Braking System (ebs): Equipped
Engine Type: Prostar 4-stroke Sohc Twin Cylinder
Fuel System/battery: Electronic Fuel Injection / 400 Cca
Horsepower: 78 Hp
Transmission/final Drive: Automatic Pvt P/r/n/l/h In-line Shifting

Dimensions

Bed Box Dimensions (l X W X H): N/a
Estimated Dry Weight: 864 Lbs (392 Kg)
Front/rear Rack: 120 Lb (55 Kg)/240 Lb (110 Kg)
Fuel Capacity: 5.25 Gal (19.9 L)
Ground Clearance: 12 In (30.5 Cm)
Overall Vehicle Size (l X W X H): 83.25 X 47.6 X 50.75 In (211.4 X 120.9 X 128.9 Cm)
Payload Capacity: 575 Lb (261 Kg)
Person Capacity: 1
Seat Height (laden): 37 In (94 Cm)
Wheelbase: 53 In (134.6 Cm)

Brakes

Front/rear Brakes: Single Lever 3-wheel Hydraulic Disc With Hydraulic Rear Foot Brake
Parking Brake: Park In-transmission / Lockable Hand Lever

Additional Specifications

Front Suspension: Sealed High Clearance Arched Dual A-arm 9" (22.9 Cm) Travel
Hitch Tow Rating: 1,500 Lb (680 Kg)
Hitch Type: Standard 1.25 In (3.2 Cm) Receiver
Instrumentation: All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, Awd Indicator, Volt Meter, Coolant Temperature, Hi-temp Light, Clock, Dc Outlet
Lighting: High Output Led Pod High Beam, High Output Led Low Beam Headlights, Dual Led Brake Lights/taillights
Other Standard Features: 3,500 Lb. Polaris Hd Winch With Synthetic Rope, Front Ultimate Series Bumper, Rear Ultimate Series Bumper, Cut And Sew Seat, In Pod Battery Charge Port, Painted Plastics, Painted Springs, Pin Activated Secrity System (p.a.s.s.), Fender Flares, 6 Moveable Tie-down Points
Rear Suspension: Sealed High Clearance Arched Dual A-arm, Rolled Irs, 10.25" (26 Cm) Travel
Ride Command+: Available

Tires / Wheels

Electronic Power Steering: Multi Select Eps
Front Tires: 27 X 9-14 Duro
Rear Tires: 27 X 11-14 Duro
Wheels: 14 In. (35.6 Cm) Aluminum

Notes

Notes

Notes:

Stand out in the crowd with this beautiful machine with the do-it-all capability, features and strength of the Sportsman 850 Ultimate Trail.

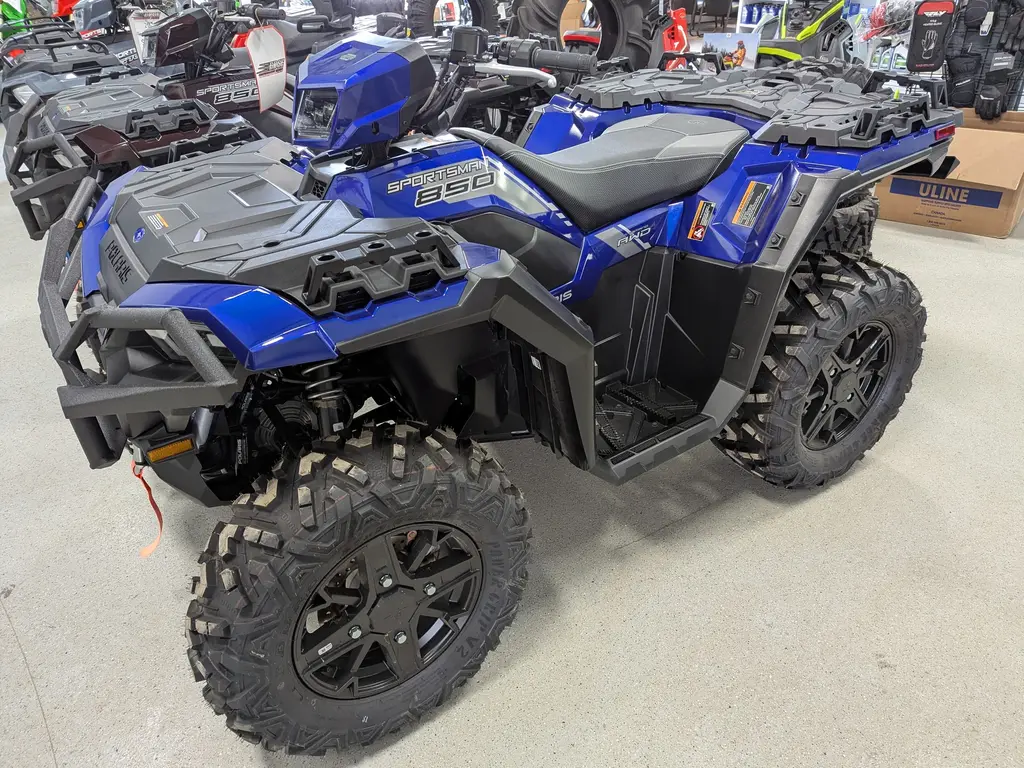

### 2024 Polaris® Sportsman 850 Ultimate Trail

**TAKE YOUR JOURNEY TO THE TOP****Features may include:**

**SMOOTH**The Sportsman 850 is forged toughness and packed with features to tame the rugged off road.

* Superior Ground Clearance

When the terrain turns unpredictable, rise above the nasty stuff and avoid obstacles with 12" of ground clearance.

* Tame More Trails

Industry exclusive Independent Rear Suspension not only smooths rough trails, it also further isolates you from bumps and vibrations for all-day riding comfort.

* Nimble For Tight Spaces

Ride on designated trail widths of your choosing and explore off-trail with the nimble and easy to maneuver 48" wide stance.

**STRONG**Take charge of the off road with the do-it-all capability and strength of the Sportsman 850.

**Tackle Any Task or Trail**Hard-working capability continues the tradition with any-situation toughness, towing and payload that works harder so you don't have to.

* All-Weather Reliability

Extreme cold, heat or precipication won't slow you down thanks to the cranking power of the industry's largest 30 A.H. battery and quick-start reliability of Electronic Fuel Injection (EFI).

* Power Through the Elements

Chase more trails with the power, traction and ground clearance to tame the wildest terrain.

* 78 HP Engine
* On-Demand All-Wheel Drive
* 12" of Ground Clearance
* Powerful 30 A.H. Battery
* 1,500 Lb. Towing Capacity
* 360 Lb. Front and Rear Rack Capacity
* RIDE COMMAND+ with Accessory Purchase
* 27" Duro Tires with 14" Aluminum Wheels
* High Output LED Pod & Headlights
* Dual High Clearance Arched A-Arms
* Ultimate Series Front and Rear Bumper
* 3,500 Lb. Polaris HD Winch With Synthetic Rope
* Multi-Select Electronic Power Steering (EPS)
* 6 Modular Rack Extenders with Lock & Ride
* Standard Engine Braking System (EBS)
* Active Descent Control (ADC)
